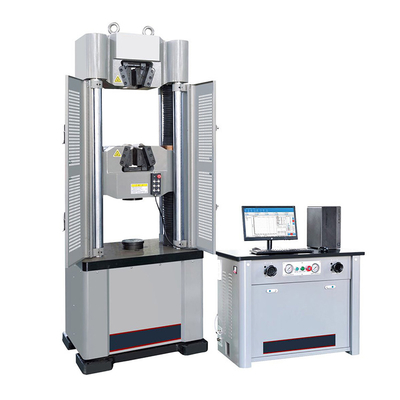

2021 Hot 2000kn utm universal machine servo actuator hydraulic tension and compression testing machines made in China
1Application:
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.
Double test space frame:
With high structural stiffness,4 columns and 2 screws with double testing space The upper space is intended for tensile tests, and the lower for compression, shear, bending, folding, etc. Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide. Mobile crossbar separates the two test zones and is positionable in height by means of two spindles driven by an integrated electric motor frame.
Host feature:
Rigid 4-column load frame construction providing superior axial and lateral stiffness and minimum maintenance, low reaction at specimen failure. With chrome plated columns for easy cleaning and longest life. Lead screw dust cover: Prevent foreign objects and dust from entering the precision lead screw, and improve the durability of the screw and drive mechanism
Specifications:
|
Model |
WAW-100D
WEW-100D |
WAW-200D/300D WEW-200D/300D |
WAW-600D WEW-600D
|
WAW-1000D
WEW-1000D
|
WAW-1200D WEW-1200D
|
WAW-2000D
WEW-2000D
|
|
Control Way |
WAW-D: Constant stress uniform deformation constant displacement three closed loop control and program control dealing WEW-D:loading process manual control,computer automatic data dealing |
|||||
|
Number of Screw drivers |
4 |
|||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
|||||
|
Load Range |
2%~100%FS |
|||||
|
Load Resolution |
1/300000 |
|||||
|
Deformation Measurement Range |
2%~100%FS |
|||||
|
Deformation Accuracy |
≤± 1% |
|||||
|
Displacement Resolution |
0.01mm |
|||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|
Displacement Error |
≤±0.5% |
|||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|
Clamping Method |
Hydraulic Automatic Clamp |
|||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|
Compression Plate Size |
Φ 160mm |
|||||
|
Bending Roller Distance |
450mm |
|||||
|
Width Of Bending Rollers |
120mm |
|||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
|||||
