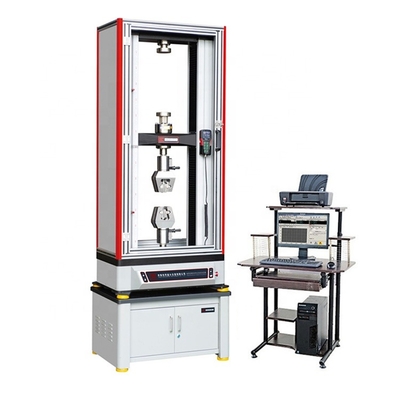

Tensile Compression Bending Bending Test For Metal Materials Test 20 kn 200kn Electronic Universal Testing Machine KASON With CE Certificate

Specifications:

Model

ETM503

ETM104

ETM204

ETM304

ETM504

ETM105

Columns

Double Column

Load Capacity (kN)

5

10

20

30

50

100

Test Grade

0.5

0.5

0.5

0.5

0.5

0.5

Testing Force Accuracy

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Testing Force Range

0.4%-100%FS

0.4%-100%FS

0.4%-100%FS

0.4%-100%FS

0.4%-100%FS

0.4%-100%FS

Force Resolution

1/300000

1/300000

1/300000

1/300000

1/300000

1/300000

Displacement Accuracy

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Displacement Resolution

0.05mm

0.05mm

0.05mm

0.05mm

0.05mm

0.05mm

Speed Range (mm/min)

0.01-1000

0.01-1000

0.01-1000

0.01-1000

0.01-1000

500

Control Accuracy

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Max. Tensile Testing Space(mm)

670

670

670

770

770

650

Max. Compression Testing Space(mm)

900

900

900

1000

1000

1000

Test width (mm)

450

450

450

450

450

550

Compression Platen

80mm

80mm

80mm

80mm

80mm

80mm

Load cell

High-precision USA load cell offers high stiffness, high stability, and high linearity

Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test

Self-recognition (TEDS) function, Regular self-calibration

Position limit switch

Upper and lower lights

Power Supply

AC220V±10%, 50Hz/60Hz

Overall Dimensions (L*W*H: mm)

850 x 590 x 1750

840 x 570 x 1850

950x660x2000

Net Weight(kG)

370

        370

370

420

420

680

Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.
