Overall dimension of main engine (mm):420*280*1580
기본 정보
Model Number:LDS-2
결제 및 배송 조건
Packaging Details:Export Fumigation packaging
Supply Ability:1000 Piece/Pieces per Month
제품 설명
Product Description
Specification
1、 Main uses
It can be widely used in mechanical research, aerospace machinery, aerospace machinery, chemical industry, etc.
Different attachments can be selected according to GB / ISO / ASTM / JIS / din and other standards. Tensile, compression, bending, peeling, shearing, tearing, piercing, bursting and various high and low temperature tests can be carried out. The yield strength, tensile (compressive and bending) strength, elongation, non proportional strength, elastic modulus and other parameters of the material can be tested
2、 Host structure

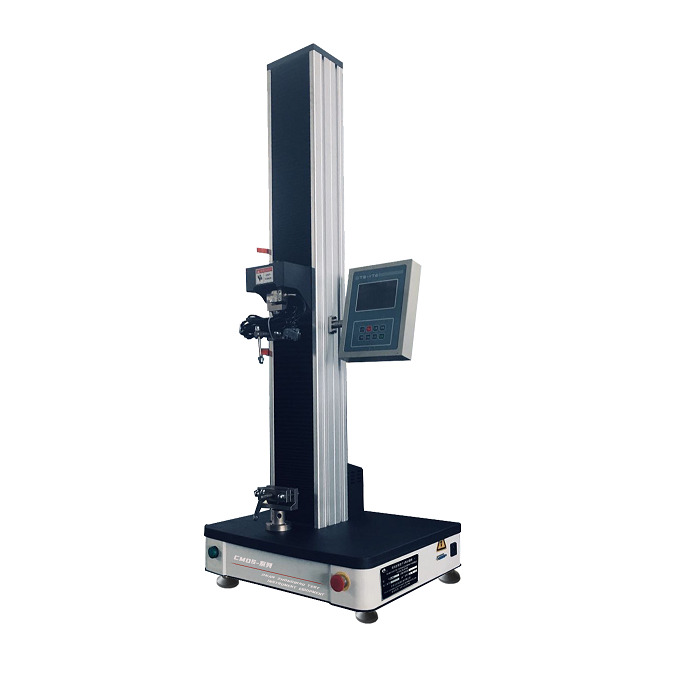

WDS single arm digital display electronic universal testing machine adopts single arm structure. The host part is composed of column, upper beam, middle beam and working table. The speed control system is installed at the lower part of the workbench. The servo motor with high speed regulation precision, wide range and stable performance drives the ball screw pair to rotate through the synchronous gear belt deceleration system, and the ball screw pair drives the middle cross beam and drives the tension attachment (or Compression and bending attachments) move up and down to realize loading and unloading of samples. The structure has the advantages of high rigidity, high efficiency and stable transmission.
3、 Comprehensive test platform
Microcomputer hardware platform, accurate real-time data acquisition and processing, measurement and control interface mild, intuitive, clear hierarchy, simple operation and so on.
4、 Test force measurement:
Load measurement: the high-precision spoke load sensor and high-performance measurement amplification system are used to ensure the high resolution of the test force. Multiple sensors can be configured according to user's requirements to realize the measurement of wide range of test force.
Displacement measurement: using 2000p / R high-precision photoelectric encoder and precision lead screw coaxial rotation, through the digital circuit to achieve the measurement of power control system, the use of digital servo controller, control high-performance servo motor drive synchronous tooth belt, drive two pairs of high-precision seamless precision lead screw drive, with stable loading, good low-speed performance, no gap, high transmission efficiency, noise It has the characteristics of low tone and stable transmission.
5、 Deformation measurement system
WDS single arm digital display electronic universal testing machine can be equipped with large deformation measurement system according to the requirements of test standards.
6、 Protective device
WDS single arm digital display electronic universal testing machine can adjust the position of limit protection switch according to different tests to effectively prevent fixture collision. With overload, over-current, leakage protection functions.
7、 Main technical parameters:
Product Name: digital display electronic universal testing machine
Product model: wds-02, wds-05, wds-1, wds-2, wds-5
Structural form: single arm structure
Test force (n) 200 500 1000 2000 5000
Test force level 1
Test force measurement range: 0.4% - 100% FS
The relative error of indication value of test force is less than ± 1% of indication value
Force resolution: 1 / 50000
Displacement measuring device photoelectric encoder
Relative error of displacement indication ≤ 1% of indication value
Displacement resolution (mm) 0.01
Displacement rate adjustment range (mm / min) 0.05-500 stepless speed regulation
Safety protection device: mechanical limit protection and software overload protection
Effective tensile space (mm) 600 (heightening type 850)
The stretching fixture is selected according to the material
Overall dimension of main engine (mm): 420 × 280 × 1580
Host power supply: 0.3kw/ac220v ± 10%
Main engine weight (kg) 150
Note: the parameters of Zhongbiao series electronic universal testing machine are for reference only, subject to change without notice, subject to the company's products.
item
value
Place of Origin
China
Shandong
Brand Name
ZBT
Model Number
LDS-2
2000N
Overall dimension of main engine (mm)
420*280*1580
Packing & Delivery
Export Fumigation packaging
