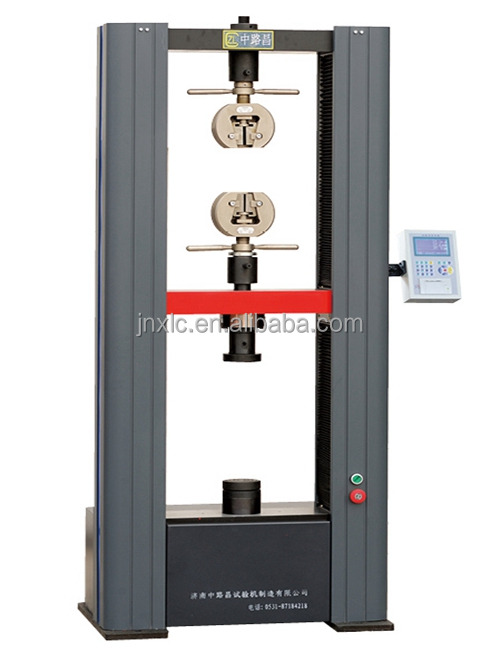

Digital Display Tensile Tester 50KN With ASTM Standard
Main Function and Usage
Adaptable Standard GB,ISO,ASTM,DIN
Main Specifications and Technical Parameter:
Model | WDS-50 |
Max. Testing Force | 50kN |
Measure Range of Testing Force | 2%-100%FS |
Accuracy of Testing Force | Over ±1% |
Discrimination of Displacement(mm) | 0.001 |
Accuracy of Displacement Measure | Over ±1% |
Tensile Volume(mm) | 600 |
Compression Volume(mm) | 600 |
Testing Volume(mm) | 600 |
Range of Speed Control(mm/min) | 0.01~300 |
Accuracy of Speed Control | Over ±1% |
Accuracy of Deformation Value Display | Over ±1% |
Weight (kg) | 500 |
Jinan XLC Testing Machine CO.,LTD is The Number One Brand of Testing Machine in China with Best Stability and Best Reliability.
1. Packing Method: Horizontal Packing to saving moreipping cost.
2. Packing Materials: Plywood Case metting export long transport requirement.
3. Shiping Time: Shipped within 15-20 days after payment.
4. Shipping Way: Shipped by sea or air is available.
1. Why Choose Us?
>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.
>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Each hydraulic universal testing machine factory has passed the 138 program test items
>Each electronic universal testing machine factory has passed 112 program test items
>Each pressure test machine factory has passed the 76 program test items
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.
2.Are you a factory?
>Yes,Factory+trade,17 years focusing on test instruments field.
3. What's the product delivery time?
>Within 5 days after receive the payment
4.What's your payment terms?
>We accept T/T, L/C or Western Union.
5.What's your terms of trade?
We accept EXW, FOB, CNF, CIF, and so on.
