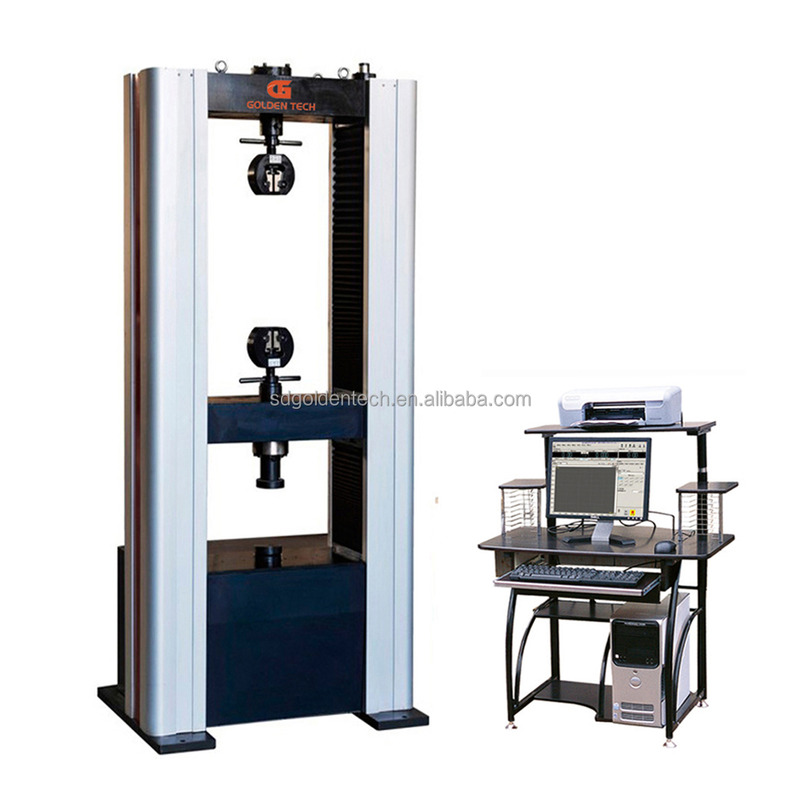

WDW 20kN 50kN 100kN 200kN 300kN Universal Tensile Testing Machine for metal steel plastic rubber matrix composite
1. Applications & functions
These WDW Series Computerized Electromechanical Universal Testing Machines are mainly used to do tensile, compression and bending test of metal and non-metal materials. It is ideal testing machines for enterprises’ quality control department, teaching in university and colleges or scientific research institution, etc. It is calibrated according to ASTM E4 and ISO75001. It can meet test standards ISO 6892, ASTM E4, ASTM E8, ASTM A370, ASTM D638, ASTM D790, ASTM E4, EN 10002-4, EN 10002-1, ISO 7500-1, ASTM D1002 and so on. The testing materials are including Steel, Metal, Rubber, Plastic, Cord, Composite Materials, Cable, Wire, Aluminum, Copper, Textiles, Food, Packaging, Nonwoven etc.
2. Main Technical Specifications:
|
Model Specifications |
WDW-5 |
WDW-10 |
WDW-20 |
WDW-50 |
WDW-100 |
WDW-200 |
WDW-300 |
|
Max Load Capacity (kN) |
5 |
10 |
20 |
50 |
100 |
200 |
300 |
|
Load Accuracy |
±0.5% of applied force |
||||||
|
Load Resolution |
Max. testing force 1/500000 |
||||||
|
Test Zones |
Single |
Dual (upper for tensile, lower for compression) or Single (lower for tensile, compression) |
|||||
|
Test Speed Range |
0.005-500 mm/min |
||||||
|
Strain Accuracy |
≤±0.5% |
||||||
|
Crosshead Travel (mm) |
700 |
600 |
650 |
650 |
550 |
||
|
Compression Space (mm) |
- |
500 |
500 |
500 |
600 |
||
|
Space Between Columns |
- |
400 |
550 |
550 |
560 |
||
|
Jaw dimension (mm) |
0-3 |
0~7 |
0~14 |
0~14 |
0~20 |
||
|
- |
φ4~φ9 |
φ4~φ14 |
φ4~φ20 |
Φ9~φ26 |
|||
