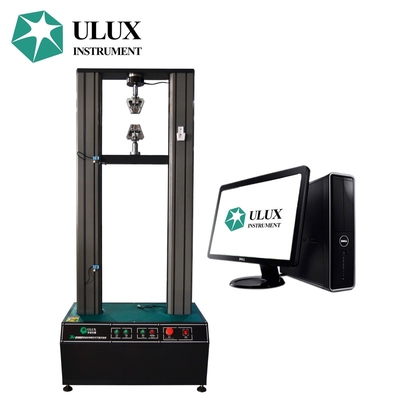

YN21003 Computer-controlled Electronic Universal Tester (double columns)
Product description
Computer-controlled electronic universal tester (double columns) is used for tensile, compression, bending, cutting test of various materials, which adopted with advanced machinery, SCM and computer technology to record the load of the sample, the variable displacement and time change curve, to research the material property and control the quality during manufacturing.
Standards
• GB/T 228-2002
• GB/T16825-1997
Technical parameters
• Max test force: 5KN, 10KN, 20KN (optional for users)
• Effective stroke: about 800mm
• Testing width: 400mm
• Test force value relative error: ≤±1%
• Sensor: Transcell load cell made in USA
• Test speed range: 0~300mm/min
• Displacement resolution: 0.01mm
• Support beam: high carbon steel forged, good mechanical performance, without deformation
• Power system: Japan Panasonic 750W servo motor
• Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
• Grip surface process: all of the grips are adopted the hard chromium plating process, the grip block is adopted imported Japanese tool steel, SKD-11 high frequency process, HRC is over 55, wear resistant and impact resistant
• Guide rod bearing: NSK ball linear bearing imported from Japan
• Guide rod: made of two φ30 bearing steels with surface hardening, the surface hardness can reach above HRC58
• Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 20
• Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
• Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
• Display method: Test software +computer display
• Section bar: one-time extrusion aluminum alloy section bar, high strength, small deformation and corrosion resistance
• Auxiliary remote control for clamps lifting
• Safety device: overload stop function, up and down travel limiter, sample break stop function
Specifications
• Overall dimensions: 810mm×520mm×1850mm
• Power supply: AC 220V 50/60Hz 5A
Instrument Structure
Wooden cases according to import and export standards
After-sales service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solutions within 3 working days. Besides, we also will provide operation video and English operation muanual.
Our factory is equipped with modern office facilities and production sites, with a long engaged engineering and technical team in design, production and commissioning, and a well-trained management team.
As shown in our lab, ULUX CORE PRODUCTS ARE: tensile test machine, universal test machine, aging ovens, smoke density tester, vertical burning tester, fire resistance tester, rotorless rheometer, mooney viscometer, oxygen index tester, high-low temperature test chamber, Ozone Test Chamber, hardness tester.
Our Factory
SUZHOU ULUX INSTRUMENT CO., LTD. is a professional manufacturer of wire & cable test equipment. We focus on researching, developing, production and marketing wire, cable, rubber, plastic and other test instrument in this field. Our equipment are designed and produced strictly as per GB, UL, CSA, VDE, CCC, ASTM, JIS, ISO, BS, SATRA, CIE, ANSI, EN, DIN etc. which in line with different countries’ test standards. We also can design different equipment according to customers’ special requirements to meet customers’ satisfaction. Our core products include: Wire and Cable Test Machine, Temperature and Humidity Environmental Test equipment, Flame Test equipment, Mechanical Property Test equipment, Electrical Property Test equipment and some other test equipment. We hope to help the wire & cable manufacturers increase their reputation and trust in customers.
