WDW-50H 50kN UTM Computerized Electronic

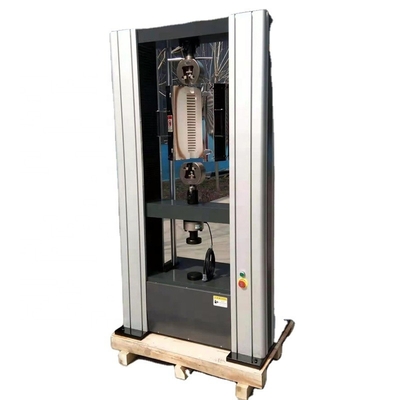

300-1200degree High Temperature Tensile Testing Machine
WDW-50H 50kN Computer Controlled Electronic Universal Tensile Testing Machine, can test and analyze the mechanical properties of various metal material, non-metals material and composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, wires, metal wires, metal steel wires, steel bars, rebars, cables, textiles, fibers, plastics, rubber, ceramics, food, and medicine. For packaging, aluminum-plastic pipes, plastic doors and windows, geotextiles, films, wood, paper, metal materials and manufacturing, the maximum test force value, breaking force value, and yield can be automatically obtained according to GB, JIS, ASTM, DIN, ISO and other standards Test data such as strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity, and flexural modulus of elasticity.
It also can do high low temperature tensile test with high-low temperature chamber
It also can do high temperature tensile test with high temperature furnace
|
Model |
WDW-50 |
WDW-50E |
|
Maximum test force |
50 kN |
50 kN |
|
Loading force accuracy |
Class 1.0 |
Class 0.5 |
|
Load cell Brand |
China Brand |
Imported USA Transcell Brand |
|
Measurement range of loading force |
2%-100% Full Scale |
0.4%-100% Full Scale |
|
Test force measurement accuracy |
better than ±1% |
better than ±0.5% |
|
Test force resolution |
1/300000 |
1/300000 |
|
Test force measurement repeatability error |
≤±1% |
≤±0.5% |
|
Resolution of crosshead displacement |
0.001mm |
0.001mm |
|
Displacement measurement accuracy: |
Better than±1% |
Better than±0.5% |
|
Measurement error of displacement indication |
≤±1% |
≤±0.5% |
|
High Temperature configuration |
-150 ~ +300°C, high low temperature chamber |
+300 ~+1200°C high temperature furnace |
|
Deformation Testing Accuracy |
Better than±1.0% |
Better than±0.5% |
|
Deformation reading value relative error |
<±1% |
<±0.5% |
|
Deformation Resolution |
1/300000 |
1/300000 |
|
AC Servo Motor Brand |
China Brand |
Imported Japan Panasonic Brand |
|
Testing Speed range |
0.01-500mm/min |
0.001-500mm/min |
|
Testing speed accuracy |
Better than±1% |
Better than±1% |
|
Maximum tensile test space |
800mm |
800mm |
|
Maximum compression test space |
800mm |
800mm |
|
Effective test width |
400mm |
400mm |
|
Stress rate |
0.005%~5%FS/s |
|
|
Stress rate accuracy range |
When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5% |
|
|
Deformation rate |
0.005%~5%FS/s |
|
|
Deformation rate accuracy range |
When rate < 0.05% FS/s, the precision± 1% When rate ≥ 0.005%FS/s, the precision ±0.5% |
|
High temperature test electric furnace for tensile test
Main performance characteristics
1. The high-temperature furnace adopts a barrel-type split structure and is heated by resistance wire. By controlling the percentage of heating power, the temperature control accuracy is realized. Continuous working life at 1100℃≥8000 hours
2. The temperature controller adopts the human-machine interface HMI developed by our company combined with the central arithmetic unit and intelligent fuzzy control. The color interface is intuitive and easy to operate. It has the advantages of high temperature control accuracy, stable and reliable performance, etc.
3. The high-temperature furnace device is equipped with a rotatable support, and the high-temperature furnace is pushed into the test space when in use, and the high-temperature furnace is removed when the room temperature test is performed.
4. The sample deformation extension measuring device is matched with the extensometer, and the two signals are averaged as the sample deformation data.
Technical performance:
1. Working temperature: 300℃~1200℃
2. Soaking zone length: 100mm
3: Temperature accuracy
4. Furnace inner diameter×length: φ90×300mm (approximately)
5. The overall dimensions of the furnace: φ320×380mm (approximately)
6. Split three-stage heating
7. The heating power is automatically adjusted by the touch screen temperature control system, with 0.2 level display accuracy 0.1℃
We have processing machine, have the ability to ensure
machine quality from start of production:
Advantages:
1. 10 years exporting experience in the filed of testing equipment
2. 20 years manufacturer of testing equipment
3. Ensure quality from production source due to we have processing machines
4. Best offer due to processing and manufacturer factory
5. Professional recommendation and positive after-service
1.Are your company a trading one or a factory?
Factory + trading company (integration), 20 years professional manufacturer in the field of testing equipment with our own processing department and manufacturing department, 10 years exporting experience.
2.After an order is placed, when to delivery?
Generally about 3-5 working days, usually we have inventory due to we have own processing machines, we can arrange shipment within 3 working days. If you have special request, we can customized it, this need confirm the production time with us.
3.What about the warranty and after - sales services?
14 months warranty after delivery. When the goods is ready, before delivery out, we will install the English version software on the computer, install the wireless network card and the remote-controller (Teamviewer) on the computer, if any problems, our engineer can help you solve problems by remote-controller at first time. When you have any problems, pls take clear pictures and videos to show us to check and confirm the real problems exactly, then our engineer teams will help you solve it through phone, remote-controller (Teamviewer ), emails freely. Our testing machines can be equipped with Desktop computer, Laptop computer, Windows 7, Windows XP, Windows 10.
4.What about the services and product' quality?
Each test equipment must be calibrated well and carried out 100% quality examination and inspect the test before delivery out.
