Computer Control Simple Tensile Laboratory Tensile Laboratory Device WDW-1 Test Column Electronic Universal Tensile Testing Machine

1 Set
MOQ
$2,365.00(>=1 Sets)
가격
Computer Control Simple Tensile Laboratory Tensile Laboratory Device WDW-1 Test Column Electronic Universal Tensile Testing Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 YEAR
Customized support: OEM
Model Number: WDW-1
Power: Electronic
Usage: Single Column Tensile Test Device
Power supply: 220V.AC/ 50HZ; 110V.AC/60HZ
Max.Load KN: 1
Max.Load KG: 100 KG
Unit switching: G,Kg,lb,N,KN
Test machine level: 1class
Force accuracy: Within ±0.5%
Maximum test speed: 500mm/min;optional maximum 1000mm/min
Testing Before Delivery: Yes
After-sale Customer Service: Yes
기본 정보
Model Number: WDW-1
결제 및 배송 조건
Packaging Details: Standard Exporting Wooden Package
Supply Ability: 300 Set/Sets per Month
제품 설명

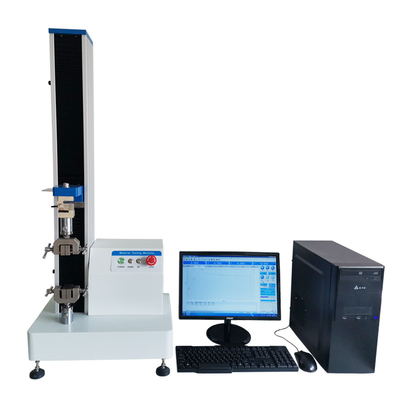

WDW-1 Lab Computer Control Pull Electronic Universal Tensile Testing Machine

Introduction

This machine is a new material testing machine combining electronic technology with software technology and mechanical transmission. It adopts imported AC servo electric and AC servo speed control system as precision power source. It adopts imported precision ball drive screw and guide rod, adopting imported grade 0.5. The precision force value sensor is then accurately measured by a high-precision force value measurement system. This series of models adopts single space structure, which is mainly used for material testing with load less than 10kN. It has firm structure, convenient operation and simple maintenance. It is an ideal test instrument for mechanical testing in various factories and enterprises. It has a wide and accurate loading speed and force range. It has high precision and sensitivity for measurement and control of load, deformation and displacement. It has stress, strain and displacement modes, and can find the maximum force value, tensile strength and bending strength, compression strength, modulus of elasticity, elongation at break, yield strength and other parameters, suitable for tensile, compression, peeling, tearing, shearing, etc. mechanical properties test and analysis.

Application industry:
Rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision department; colleges and universities; scientific research laboratory; basic materials laboratory; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile chemical fiber; wire and cable; packaging materials and food; Instrumentation; medical equipment; petrochemical; civil nuclear energy; aerospace; ceramic materials; magnetic materials industry; energy batteries; basic materials;

Application products: Plastic Film Fiber and thin wire Adhesive Foam material Tape Elastomer Connector Biomaterials
Wood and paper products Metal foil Metallic line Below medium strength metal Oil bearing Ceramic Part Fastener Composite material

According to the standards: ASTM, ISO, DIN, GB and other international standards.
Features

(1)Meet most of the mechanical properties test (2)Completely compact structure, high rigidity design, durable (3)Easy to operate, anyone can operate (4)High accuracy, certified by a third-party testing agency (5)High speed, low vibration, low noise motor drive (6)Multilingual application function, adapt to different countries’ using (7)Capabilities with graph, data sheet, report viewing and printing (8)Automatic returning function after test completed (9)Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc. (10)Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time (11)Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc. (12)With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices (13)Optional: small deformation metal extensometer, large deformation displacement tracker



Specification
Brand
HongTuo
Model
WDW-
-005
-01
-02
-05
-1
-2
-5
-10
Capacity
KN
0.05kN
0.1 kN
0.2 kN
0.5kN
1 kN
2kN
5kN
10KN
KG
5kg
10kg
20kg
50kg
100kg
200kg
500kg
1000kg
lb
Structure
Double rail structure
Three double rail structure
Unit switching
G、Kg、lb、N、KN
Displacement unit switching
Inch cm mm
Test machine level
1class
Effective force range
0.4％～100％FS
Force accuracy
Within ±0.5%
Force decomposition
1/200 000
Force Power magnification
X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
Displacement resolution
0.05mm
Displacement accuracy
Within ±1%
Deformation measurement range
2%～100%FS
Deformation indication accuracy
Within ±1%
Large deformation measurement range
(0～800)mm
Large deformation resolution
0.05mm
Large deformation indication error limit
Within ±1%
Maximum test speed
500mm/min；optional maximum 1000mm/min
Minimum test speed
0.1mm/min
Speed accuracy
Within ±1%
Beam travel
Measuring height
standard
No grip testing stroke：920mm；With grip testing stroke：320mm
optional
No grip testing stroke：1320mm；With grip testing stroke：320mm
Fixture configuration
One set of tensile grip；can choose other grips
Returning method
Manual or automatic selection, automatically return after the test ends or manually return to the initial position
Stop method
1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
Safety devices
1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
Overload protection
Over 10% of maximum load, automatic machine protection
Accessories
1 power cord; 1 manual; 1 certificate
Optional accessories
Anti-splash device (protective door); printer;software
Powder supply
220V.AC/ 50HZ; 110V.AC/60HZ
Main host size/ weight
Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG
Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG
Packing size / weight
Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG
Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG
Details Images
Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
FAQ
1.Quality Insurance We guarantee this instrument for 1 year and life-long maintenance. We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons: (1) Wrong operation; (2) Fixed or refitted personally; (3) The machine itself is not the reason caused breakdown; (4)Applying the machine under the serious conditions.such as high temperature,moist, corrosive gas,or vibration. (5)Move or transportation as soon as installed. (6)Consumables and easy-loss components. (7)Natural disaster 2.After-sales Service a.If errors occur,please refer to the troubleshooting tips of the instruction manual. b.Please contact with our after-sales service department or distributor in time if can’t clear fault. c.DahoMeter after-sales hot line 400 830 0646 3.Are we manufacturer made copy product or original product? We are the original manufacturer. 4.Why choose us? We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service. a.We have been specialized in this field since 2002. b.Professional researching and technology team. c.Customer service team. 5.Can you offer quality certification? Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge. 6.Can you do the calibration and testing before handover the goods? Yes.We do testing and calibration for every product before delivery.
