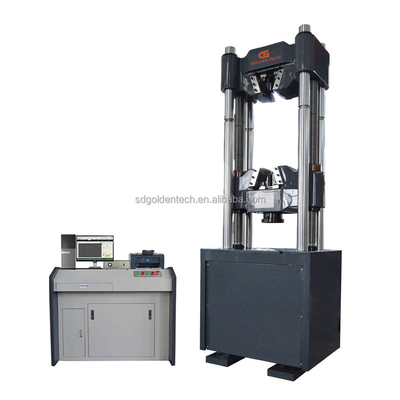

WAW Series 300kN 600kN 1000kN 1500kN 2000kN Steel Rebar Servo Hydraulic Universal Tensile Strength Testing Machine
1. Applications & functions
These WAW-E Series Computerized Servo Hydraulic Universal Testing Machines are mainly used for tensile strength, elongation values, etc test of metal materials, such as steel, rebar, metallic sheet, fastener, bolt, steel strand etc. It also can execute compression and bending test with relative fixtures. It is calibrated according to ASTM E4 and ISO 75001. It can meet test standard: ISO 6892, ASTM A615, EN10002-1, ASTM A370, ASTM E8, etc.
2. Main Technical Specifications:
|
Parameter-Model |
WAW-300E |
WAW-600E |
WAW-1000E |
WAW-2000E |
|
Max. testing force (kN) |
300 |
600 |
1000 |
2000 |
|
Accuracy |
±0.5% of reading value |
|||
|
Round specimen diameter range (mm) |
φ6-φ26 |
φ13-φ40 |
φ13-φ60 |
Φ15-φ70 |
|
Flat specimen thickness range (mm) |
0-15 |
0-30 |
0-40 |
0-70 |
|
Flat specimen width range (mm) |
75 |
90 |
100 |
120 |
|
Tensile space (mm) |
800 |
850 |
850 |
600 |
|
Compression space (mm) |
700 |
700 |
750 |
500 |
|
Clearance between columns (mm) |
465 |
485 |
515 |
700 |
|
Upper and lower compress plates size (mm) |
φ120 |
φ160 |
φ200 |
φ220 |
|
Distance of bending by pass roll (mm) |
30-400 |
30-430 |
30-380 |
50-320 |
|
Max. piston stroke (mm) |
250 |
250 |
250 |
250 |
|
Power supply |
380V±10%, 50Hz, Three phase |
|||
|
Work environment |
10~40℃, Relative humidity≤80% |
|||
|
Dimension of host machine (mm) |
1000×600×1980 |
1100×650×2300 |
1010×815×2500 |
1200×1000×3200 |
|
Dimension of control cabinet (mm) |
1100×640×1000 |
|||
|
Weight (kg) |
2000 |
2500 |
3500 |
9000 |
